David Clark H10-76 Headset

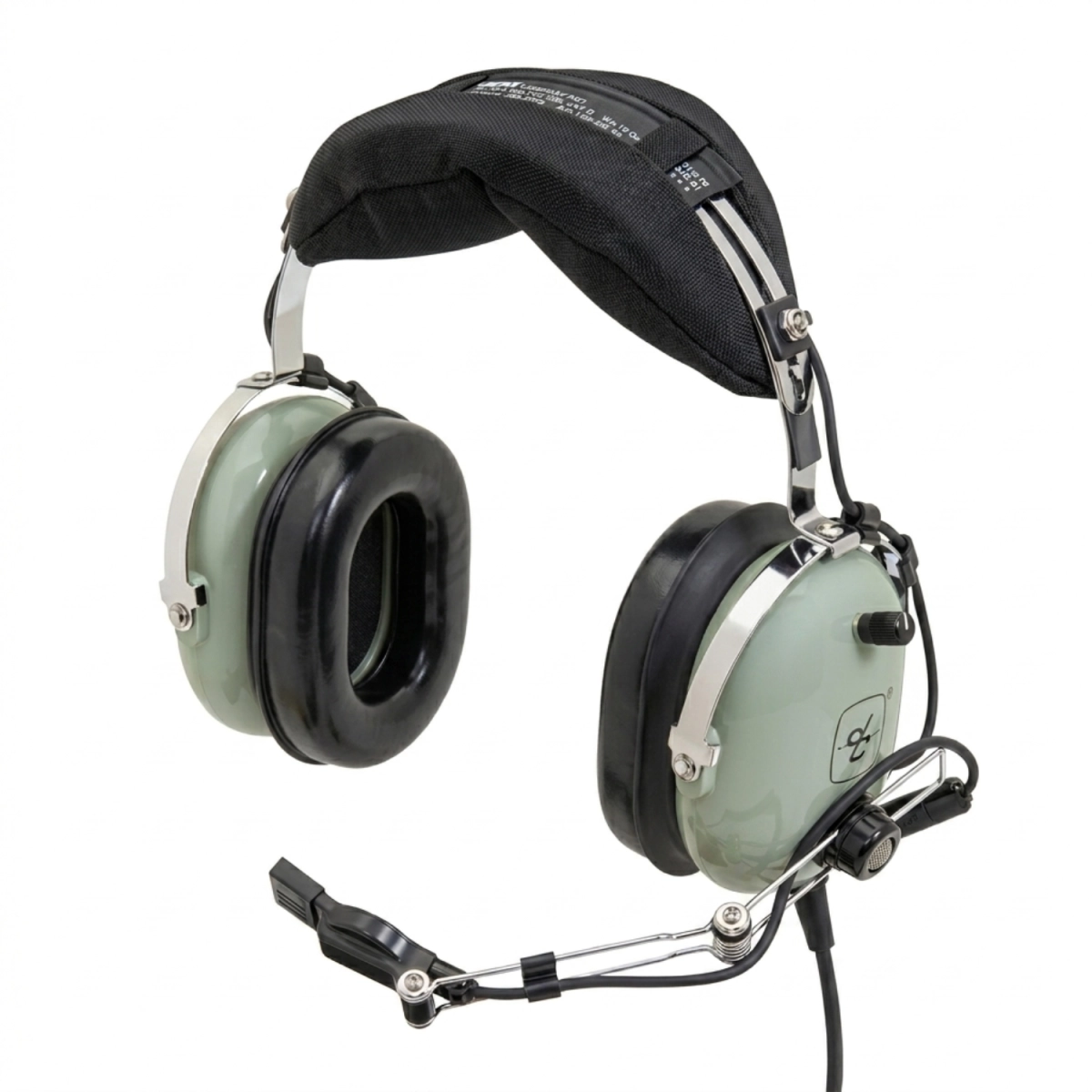

David Clark Pilot Headset: Low-Impedance H10-76 System for Military Aviation

The David Clark Pilot Headset model H10-76 constitutes a technical equipment specifically developed to withstand operational demands in military aircraft and helicopter cockpits. This communication device stands out due to its 10-ohm low-impedance architecture, configured with parallel wiring to offer direct compatibility with government-issued audio systems. Every pilot, commander, or flight crew member obtains effective acoustic isolation thanks to a passive noise reduction rating (NRR) of 24 dB, which reduces environmental interference during prolonged air transport missions.

This hardware for the air navigation sector incorporates an M-87 noise-canceling dynamic microphone, manufactured under strict compliance with military-grade MIL-M-26542/2 USAF specifications. Voice transmission is executed clearly through a 5-ohm microphone impedance and a headphone frequency response ranging from 100 to 5,500 Hz. The chassis weight is 538 grams without cords, a physical lightness combined with gel ear seals and an oblong soft head pad, optimizing mechanical pressure distribution for the aviator during their flight hours.

Connectivity for these headphones is managed through an extended coiled cable assembly with a maximum stretch of 1.5 meters, finished with a single U-174/U mating plug common in helicopters. This cord design provides flexibility against abrupt movements in the cockpit without risk of accidental disconnection. Maintaining radio message clarity is a critical logistical priority for aeronautical safety, making this passive model a reference tool for personnel working in high-noise areas.

Features

• 🛡️ Technical Low Impedance: 10-ohm configuration adapted to the audio networks of military aircraft and helicopters.
• 🔇 Noise Attenuation: 24 dB NRR index that minimizes background noise using ergonomic gel ear seals.
• 🎙️ USAF Grade Microphone: M-87 dynamic component with noise cancellation under MIL-M-26542/2 military regulations.
• 🔌 Helicopter Connector: 1.5-meter long extendable coiled cable equipped with a standard U-174 plug.

Review other technical hardware options for your missions by exploring our specialized collection of aviation aviation headsets for flight crews.

Frequently Asked Questions (FAQs)

Are these headphones directly compatible with civilian aircraft communication systems?

No, the H10-76 headphones utilize a single U-174 connector and a low-impedance configuration. For use in civilian general aviation cockpits requiring dual plugs, a technical adapter or an equivalent civilian model is needed.

What type of power cells or internal batteries does this model require to activate its audio system?

This device operates under a passive physical principle, meaning it does not require internal batteries to function. Microphone power and audio transfer are managed entirely through the physical connection to the aircraft.
