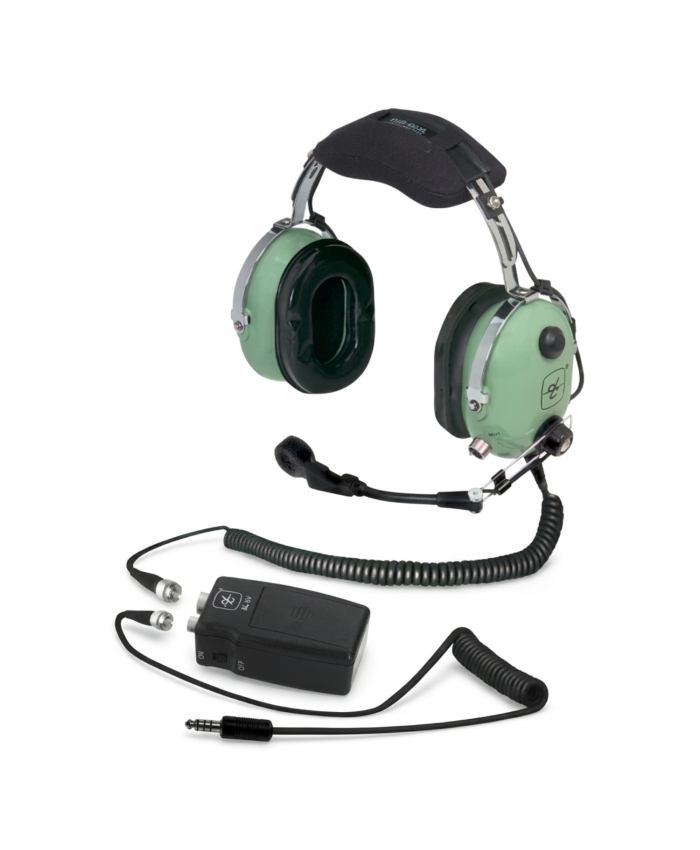

David Clark H10-66XL ENC Headset

When communication clarity and comfort are critical, the David Clark H10-66XL ENC Headset stands as the ultimate choice for pilots and ground personnel. Engineered for the rigorous demands of U.S. Armed Forces, NATO, and major mission command centers, this headset delivers an unparalleled listening and speaking experience in the loudest environments.

Superior Electronic and Passive Noise Reduction

The H10-66XL excels in its ability to offer advanced passive and electronic noise attenuation. This dual layer of protection not only significantly reduces aircraft cabin noise or ground environment sounds but also dramatically improves communication intelligibility. You will experience a remarkable reduction in ambient noise, which is crucial for concentration and operational safety in critical missions and long-duration flights.

Clear, Reliable Communications with M-87 Dynamic Microphone

At the heart of clear voice transmission is its MIL-PRF-28542 (USAF Specifications) certified M-87/AIC dynamic noise-canceling microphone. This microphone is designed to provide crisp and reliable communication, even in extremely noisy environments. Furthermore, its switchable low impedance (5 or 150 ohms) allows for exceptional versatility, adapting to various communication system configurations.

Its flexible, 260° rotatable low impedance wire boom microphone allows for precise positioning, ensuring your voice is captured with maximum fidelity regardless of your position.

Ergonomic Design and Unmatched Comfort

Comfort is a key factor in aviation, and the David Clark H10-66XL does not disappoint. It features undersoft, comfort-gel/foam ear seals that provide an unsurpassed seal and enhanced noise attenuation, eliminating pressure points. The soft head pad adds an additional layer of comfort, making this headset perfect for long-term use without fatigue. Its ergonomic design ensures a secure and comfortable fit, vital for demanding missions.

Key Additional Features

• Connectivity: Extended 7-foot coiled cord with 7-conductor shielded for enhanced durability and reach.
• Single Volume Control: Allows for easy audio adjustment for a personalized listening experience.
• Noise Filter: The M-87 dynamic microphone filters out engine and cockpit noise.
• Durability: Built to withstand the rigors of the military aircraft cockpit and ground environments, offering lasting performance and reliability.
• Compatibility: Allows for use with standard issue oxygen/bio-chemical masks.

The David Clark H10-66XL ENC Headset is an investment in safety, clarity, and comfort for the most demanding professionals. To explore more David Clark accessories and spare parts, you can visit our dedicated section here.

Product Details

• Product Type: Aviation Headset
• Model: H10-66XL ENC
• Ear Coupling Type: Around-the-Ear
• Hardware: Nickel Chrome Carbon Steel
• Dome Type: ABS
• Connection Cable: 7 ft (2.13 m) extended, 7-conductor shielded
• Earphone Principle: Dynamic (ENC)
• Earphone Impedance: 150Ω (300Ω each wired in parallel)
• Earphone Frequency Response: 300Hz - 3000Hz +/- 3 dB
• Earphone Sensitivity (SPL): 90 dB SPL on flat plate coupler (1 KHz, 1 mW) @ maximum volume nominal
• Earphone Total Harmonic Distortion (THD): < 2% @ 110 dB SPL (300 - 3,000 Hz)
• Certified Noise Attenuation (3rd Party): 27.0 dB
• Microphone Principle: Dynamic or Amplified
• Microphone Impedance: 5Ω / +10 / 150Ω, switchable
• Microphone Sensitivity at Ground Level: 50 - 107µV across 50 loac at 1KHz with input of 103 dB SPL from source or 400mV +/- 6 dB into 150Ω load @ 1KHz for 114dB SPL input.
• Microphone Sensitivity at 25,000 feet: 78 - 106µV across 50 loac at 1KHz with input of 103 dB SPL from source or 400mV +/- 6 dB into 150Ω load @ 1KHz for 114dB SPL input.
• Microphone Frequency Response at Ground Level: 200 Hz - 6,000 Hz +/- 6 dB of level gain.
• Microphone Frequency Response at 25,000 feet: 200 Hz - 6,000 Hz +/- 3 dB
• Microphone Ambient Noise Level: For use in noise levels up to 120 dB SPL.
• Microphone Total Harmonic Distortion (THD): < 6% at 114 dB SPL through 200 Hz - 6 KHz.
• Operating Voltage: 9 VDC (Alkaline 9 Volts), 1 Watt Maximum.
• Battery Life: Up to 25 hours (Alkaline 9 Volts)
• Headset Operating Temperature: -20°C to +55°C
• Headset Weight (only): 538 gr
• Warranty: Five-year

Frequently Asked Questions:

What type of batteries does the David Clark H10-66XL ENC use and what is their battery life?
This headset uses 9-volt alkaline batteries and offers up to 25 hours of continuous use, allowing you to operate during extended missions without worrying about power.

Is the David Clark H10-66XL ENC suitable for use in civil commercial aviation?
Although designed for military applications and high-demand environments, its noise reduction, communication clarity, and comfort features make it an excellent choice for commercial civil aviation pilots seeking superior performance and exceptional durability.
